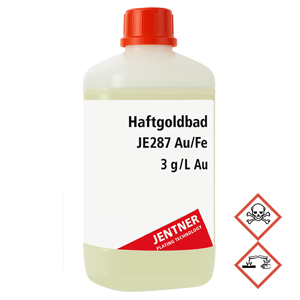

“Adhesive gold bath JE287 Au/Fe - 3 g/L Au”

The used ready-to-use adhesion gold bath JE287 is a strongly acidic gold electrolyte required for gilding precious steels. The coatings are crack-free, ductile, corrosion-protective, and low-porosity.

The bath is excellent for direct gilding of chrome-nickel steel, molybdenum-containing steel, and difficult-to-activate nickel-based alloys. The coating consists of a gold/iron alloy. Layer thicknesses of up to 3 µm are possible.

Cobalt and nickel-free!

Operating data:
Gold content: 3 g/L
Sulfuric acid content: 25 g/L (20 - 30)

Deposition data:
Hardness: approx. 165 HV
Layer thickness: until 3 µm
Fineness of the gold coating: > 99% Au

Operating conditions:
Voltage: 2 volt (2 - 3,5)
Bath temperature: 20 - 30 °C
Exposition time: 1 min. (max. 30 min.
Anode material: Mixed oxide (MOX)
Goods movement: required
Anode/Cathode surface: 1:1
Current density: 2 - 6 A/dm2
Bath filtration: From 10 liter

Further details are to be found in the EEC – safety data sheets.
