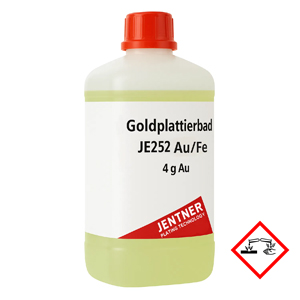

Gold plating bath JE252 Au/Fe - 4 g/L Au

The gold plating bath JE252 is a mildly acidic hard gold electrolyte that deposits yellow, uniformly shiny hard gold coatings. It is suitable for technical and decorative applications, as the deposited layers have high corrosion and wear resistance. Under optimal conditions, highly glossy and adhesive gold layers up to a maximum thickness of 8 µm can be achieved.

The coating consists of a gold/iron alloy. Cobalt and nickel-free!

Operating data:
Gold content: 4 g/L Au
pH-value: 4,0 (3,5 - 4,5)
Density: 1,035 g/ml (1,030 - 1,050)

Deposition data:
Hardness: 150 - 220 HV
Layer thickness: max. 8 µm
Fineness of the gold layer: ca. 99,5 % Au

Operating conditions:
Voltage: 2,5 volt (2 - 3,5)
Temperature: 20 - 35 °C
Anodes: Platinized titanium
Anode/Cathode surface: approx. 1:1
Goods movement: required
Power density: approx. 1 - 2,5 A/dm2
Deposition rate: approx. 22 mg/Amin
Bath filtration: from 10 liter

Form of Delivery:
Ready for use 4 g/L Au
